Features & Benefits:

Socketed Ion Charge EV Charger
Click to Enlarge
This range of 32A (7.4 kW) single phase, tethered EV chargers are an easy to fit solution for residential and business locations, complete with built in overload, ground fault and surge protection. Each charger is supplied with a RFID master card and fob, allowing vehicle charging authorisation when swiped against the unit. Spare RFID activation fobs are available on request.

  • 7.4kW Mode 3 fast charging
  • UK type 2 charger connection
  • Integrated RFID reader
  • Supplied with RFID master card and operating fob
  • Built-in PEN fault protection - no earth rod required
  • 6mA DC Integrated protection for DC leakage
  • 4 x Configurable ratings 6A, 16A, 20A, 32A
  • Single phase - 230V 50/60 Hz charging only
  • Maximum incoming cable 6mm2
  • IP54 ingress protection
  • Easy fit mains and tethered cables using Degson toggle clamp terminals (screwless)
  • LED EV charger status indication
  • 32A (7.4 kW) single phase charging
  • LED status indication
  • Independent wall mounting bracket
  • 2x M20 plastic cable glands
  • Type 2 holster, car plug and 5 metre cable

Compliant to EN61851 - 1 & 22 | EN62196 | EN62955 | LV directive 2014/35/EU | EMC Directive 2014/30/EU | RoHS Directive 2011/65/EU

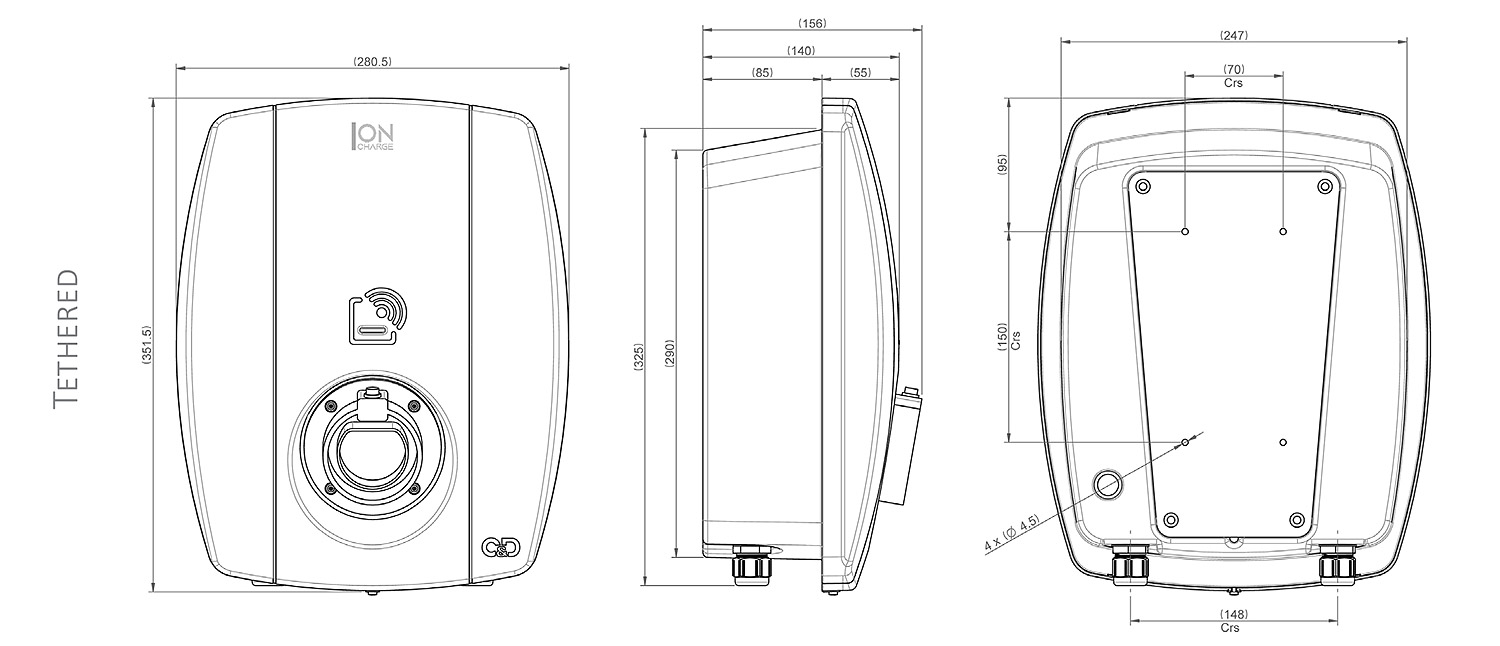

Model - Tethered EV Charger EV03220010
Height (mm) 351.5
Width (mm) 280.5
Depth (mm) 156

TO BUY THIS EV CHARGER CALL 01384 297452 or 01952 730577 LINES OPEN 8am - 8pm 7 DAYS
WHEN ORDERING SEE Info - Conditions of Sale...

Please call us for a competitive fitting quote to your area.
